Commercial Aluminum Doors

Commercial Glass Overhead Doors

Aluminum or Steel Frame

ARCHITECTURAL SERIES

Aluminum Full-View Doors and Steel Insulated Full-View Doors

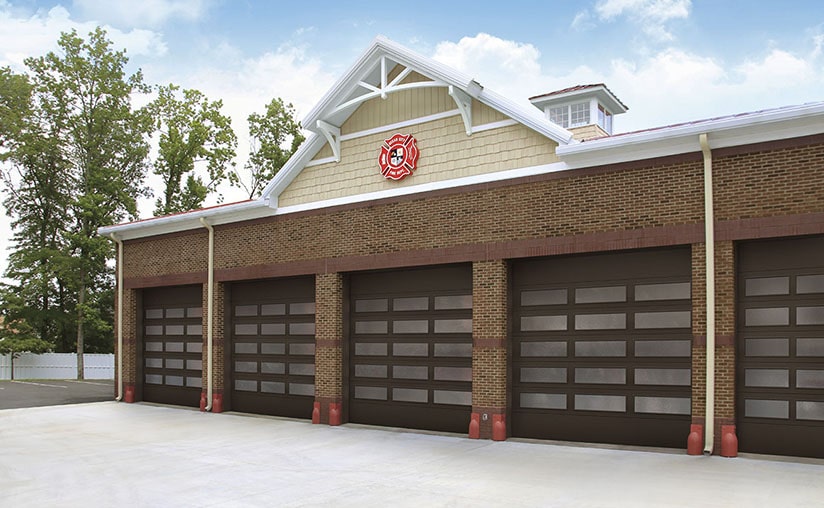

Clopay’s full-view series doors are ideal for commercial buildings requiring visibility, access to natural lighting and modern look. They're the perfect choice for everything from restaurants and fire stations to service stations and car dealerships.

These overhead doors are available with aluminum or steel frame construction, providing options that ensure maximum durability and reliability. Customize your door with a wide variety of window, color, design and performance options.

CHOOSE YOUR MATERIAL

ALUMINUM FULL-VIEW DOORS

GLASS/PANEL OPTIONS:


FULL-VIEW (904)


SOLID ALUMINUM (904)

GLAZING MATERIAL OPTIONS:


CLEAR GLASS


GRAY TINTED GLASS


BRONZE TINTED GLASS


MIRRORED GLASS*


OBSCURE GLASS


WHITE LAMINATE GLASS*


BLACK LAMINATE GLASS*


FROSTED GLASS OR ACRYLIC


CLEAR ACRYLIC


GRAY ACRYLIC


WHITE ACRYLIC


CLEAR POLYCARBONATE


BRONZE POLYCARBONATE


ALUMINUM PANEL COLOR MATCH

*Mirrored and laminate not available in 1/2"

Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2" . Tri-wall polycarbonate thickness available in 5/8". Low-E available on insulated glass.

COLOR OPTIONS:


CLEAR ALUMINUM
(ANODIZED)


STANDARD
WHITE


BRONZE
(PAINTED)


CHOCOLATE
(PAINTED)


BRONZE
ANODIZED*


BLACK
(ANODIZED)*


DARK BRONZE
ANODIZED*

Request Color Samples

*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.

Custom powder coat, Color Blast®, and anodized finishes available.

Premium finishing options include:

  • RAL color powder coat
  • 187 different powder coat offerings
  • Custom Colors with Color Blast ® Garage Door Paint System
  • Bronze, dark bronze, black or custom color anodized finishing

*Model 904U is not available with powder coat finish.

Performance Options Available:


Double-end hinge


3” Track


High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem.


25,000, 50,000 or 100,000 cycle springs available.


Exhaust port can be cut into any type of solid sectional door. Available in select sizes.


WindCode® reinforcement available up to W2 design pressure (DP) 14 PSF, depending on door configuration. Doors tested 50% greater than DP.


Upgrade your standard door with industrial-grade components.

Specialty Options Available:

Mullions

Carry-away, roll-away or swing-up mullions are available on select sizes.

STEEL INSULATED FULL-VIEW DOORS

GLASS/WINDOW OPTIONS:


19-1/2” x 16”


42” x 16”


Modern Slim Windows*

*Available on models 3728/3729 and 3208/3209 only.

Models 3728 and 3729 are available with 1/8" clear tempered, 1/8" frosted tempered, 3/4" insulated tempered and 3/4" frosted insulated tempered glass. Additional glazing options include: matte, pebble, bronze tinted and impact rated window.

COLOR OPTIONS:


STANDARD WHITE


GLACIER WHITE


ALMOND


DESERT TAN


SANDTONE


BRONZE


MOCHA BROWN


GRAY


CHARCOAL


CHOCOLATE


BLACK*


TRINAR® WHITE*


Lustra Black*±


Lustra Charcoal*±


Lustra Silver*±

*Available on select models
± Finish will have smooth texture
Custom powder coat and Color Blast® finishes available.

Premium finishing options include:

  • Custom Colors with Color Blast ® Garage Door Paint System
  • Bronze, dark bronze, black or custom color anodized finishing

Performance Options Available:


Double-end hinge


3” Track


High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem.


25,000, 50,000 or 100,000 cycle springs available.


Exhaust port can be cut into any type of solid sectional door. Available in select sizes.


WindCode® reinforcement available up to W2 design pressure (DP) 14 PSF, depending on door configuration. Doors tested 50% greater than DP.


Upgrade your standard door with industrial-grade components.

Specialty Options Available:

Mullions

Carry-away, roll-away or swing-up mullions are available on select sizes.

Safe-T-Stop™ Chain Hoist

The Safe-T-Stop is a controlled descent sectional door hand hoist with an integral braking system allowing users to operate the door with confidence.

ARCHITECTURAL SERIES

Aluminum Full-View Doors

ModelThicknessSpacingR-ValueMax Width*Max Height*
9042-1/8"Equal width
& spacing
N/A24'2"20'0"
904U2-1/8"Equal width
& spacing
3.8*20'2"20'0"

Insulated Steel Full-View Doors

Model Section Thickness Emboss Exterior Gauge Section Design Insulation R-Value Solid* R-Value w/Glass** Thermal Break Max Width✭
3729 2" Stucco 27 Minor Ribbed Polyurethane*** 18.4 8.0 Yes 20'2"
3728 2" Stucco 27 Flush Polyurethane*** 18.4 8.0 Yes 20'2"
3709 1-3/8" Stucco 27 Minor Ribbed Polyurethane*** 12.9 5.9 Yes 18'2"
3708 1-3/8" Stucco 27 Flush Polyurethane*** 12.9 5.9 Yes 18'2"
3209 2" Stucco 24 Minor Ribbed Polystyrene 9.1 4.4 Yes 20'2"
3208 2" Stucco 24 Flush Polystyrene 9.1 4.4 Yes 20'2"
3159 1-3/8" Stucco 27 Minor Ribbed Polystyrene 6.5 3.4 Yes 18'2"
3158 1-3/8" Stucco 27 Flush Polystyrene 6.5 3.4 Yes 18'2"
  • * R-values calculated per DASMA TDS-163 on a solid door
  • ** R-values calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass.
  • *** Intellicore Icon Clopay's proprietary polyurethane Intellicore insulation.
  • ✭Maximum Width and Height values listed are Standard sizing.
